| Name: | SD-450HW horizontal orbital stretch wrapping machine |
|---|---|
| Model: | SD-450HW |
| Voltage: | AC220V/110V,single phase |
| Power: | 2.2KW |
| Packing size(L XW): | 200200mm |
| Max packing length: | 1000-6000mm |
| Max load weight: | 100kg |
| Film carriage Up/down speed: | adjustable |
| Packing capacity: | 20-30torr/h |
|
PRODUCT DESCRIPTION

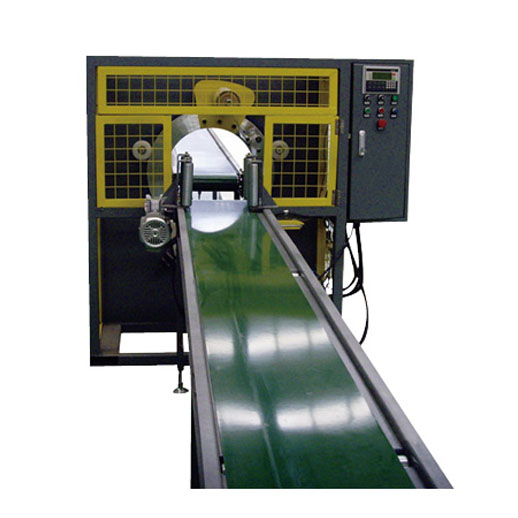

SD-450HW Horizontal orbital stretch wrapping machine is one kind of horizontal wrapper designed for the straight objects horizontal wrapping,like steel pipe packaging, Aluminum section packaging, Window &door wrapping, Rod packaging, panel packaging etc.
LLDPE stretch film/compound Kraft paper/Knitted mesh are suitable packaging material for horizontal orbital wrapper.Once stretch film is around the package, it contracts and enclose just like a rubber band, to keep the compression and stake package together.
Feature:
1. Using programmed PLC control to ensure the machine stable and reliable
2. Frequency conversion stepless speed regulation, slow start and stop, stable work
3. Photoelectric automatic sensing of goods, accurate positioning
4. Automatic film feeding and cutting,.Film cutting adopts electric heating film breaking method, which is convenient and reliable
Main Parameters:
Model | SD-450HW |
Wrapping section size | 200x200mm |
Wrapping length | 1000-6000mm |
Wrapping material width | 250mm |
Packing efficiency | 20-30torr/h |
Conveyor line loading | 0-100kg |
Convey speed | 6—8m/min |
Power | 2.2kw,AC220V |
Control system | PLC control, automatic rotating ring reset, automatic sensing cargo length |
Automatic thread and cut film | Automatic thread and cut film structure |
Packing material | LLDPE stretch film/composite craft paper/ knitted mesh, |
Horizontal wrapping machine customed service is available.We supply you whole solution in horizontal orbital wrapper.Any customed request on hotizontal orbital stretch wrapping machine,welcome to contact us.
