| Name: | SD-600H Automatic airport luggage wrapping machine |
|---|---|
| Model: | SD-600H |
| Voltage: | AC220V/110V,single phase |
| Power: | 0.75KW |
| Packing size(L XW): | (400-800)mm×(180-350)mm×(300-1200)mm |
| Max load weight: | 100kg |
| Wrapping speed: | 6-14 rpm/min (adjustable) |
| Film carriage Up/down speed: | adjustable |
| Packing capacity: | 20-40 loads/hour |
|
PRODUCT DESCRIPTION

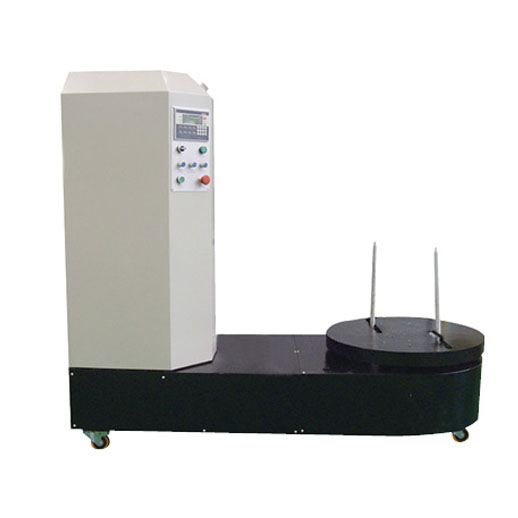

SD-600H Automatic airport luggage wrapping machine is better for airport luggage wrapping service to protect traveler's baggage.After you put baggage on machine well,SD-600H luggage wrapper will auto wrap luggage up and down with LLDPE plastic stretch film.
Features
·PLC Control & touch screen
·Counter to count pallets be wrapped
·Photo-eye pallet height sensor
·Parameter separate setting:
Top wrap times, Bottom wrap times, Carriage up/down times, Reinforce wraps, Over-wrap
·Reinforce wrap allow more wrap on same location
·Over-wrap provide more wrap over the top of loads
·Powered pre-stretch film carriage up to 300% (1:3)
·Cycle pause capacity
·Film tension, Turntable speed, Carriage speed separate adjustment from the control panel
·Separate Auto-Start/Reset, Pause & E/S buttons
Main parameters:
Model | SD-600H |
Wrapping specification | (400-800)mm×(180-350)mm×(300-1200)mm |
Turntable loading | 100kg |
Turntable speed | 6-20rpmrevolving speed can adjustable frequency |
Packing efficiency | 20-40torr/hr |
Film frame | Pre-stretch film frame, pre-stretch percent250%, automatic thread film, threading speed adjustable. |
Machine weight | 210kg |
Overall dimension | 1750*650*1950mm |
Packing material | LLDPE stretch wrapping film,width(W)500mm |
Power/voltage | 0.75kw/220V AC(accumulator optional) |
