| Name: | SD-1650FM Forklift type automatic pallet wrapper |
|---|---|
| Model: | SD-1650FM |
| Voltage: | AC220V/110V,single phase |
| Power: | 1.5KW |
| Packing size(L XW): | (500-1200)mm×(500-1200)mm |
| Max packing height: | 2100mm |
| Max load weight: | 1000kg |
| Turntable diameter: | 1650mm |
| Turntable rotation speed: | 6-14 rpm/min (adjustable) |
| Turntable height: | 85mm |
| Film carriage Up/down speed: | adjustable |
| Packing capacity: | 20-40 loads/hour |
|

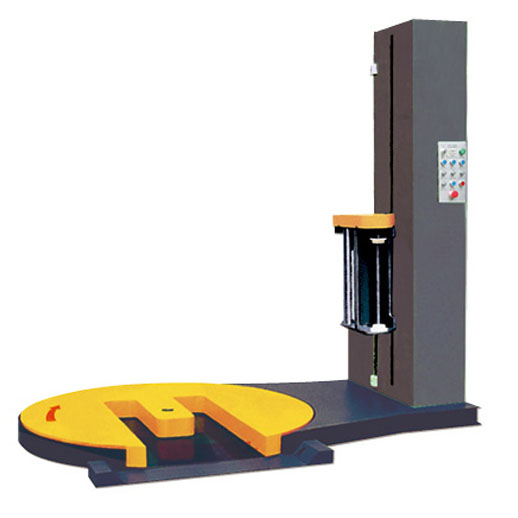

PRODUCT DESCRIPTION
SD-1650FM Forklift pallet wrapping machine comes with M tunnel turntable,which is special designed for forklift loading pallets for wrapping.It’s your ideal pallet wrapper for heavy goods and improves your pallet wrapping efficiency directly.
Features
·PLC Control & touch screen
·Counter to count pallets be wrapped
·Photo-eye pallet height sensor
·Parameter separate setting:
Top wrap times, Bottom wrap times, Carriage up/down times, Reinforce wraps, Over-wrap
·Reinforce wrap allow more wrap on same location
·Over-wrap provide more wrap over the top of loads
·Powered pre-stretch film carriage up to 300% (1:3)
·Cycle pause capacity
·Film tension, Turntable speed, Carriage speed separate adjustment from the control panel
·Separate Auto-Start/Reset, Pause & E/S buttons
Main parameters
Model | SD-1650FM |
Voltage | AC220V/110V,single phase |
Power | 1.5KW |
Packing size(L XW) | (500-1200)mm×(500-1200)mm |
Max packing height | 2100mm |
Max load weight | 1000kg |
Turntable diameter | 1650mm |
Turntable rotation speed | 6-14 rpm/min (adjustable) |
Turntable height | 85mm |
Carriage Up/down speed | adjustable |
Packing capacity | 20-40 loads/hour |
Machine weight | 700kg |
Suitable LLDPE stretch wrapping film in roll
Max. external diameter (D): 230 mm
Internal diameter (d): 76 mm
Film roll height (h): 500 mm
Film thickness: 17-35 µm
We can also produce pallet wrapper as per your request,such as pallet wrapper with scale,pallet wrapping machine with top press,auto film cutting etc.
