| Name: | SD-1650FTP industrial pallet wrapping machine with top pressing plate |
|---|---|
| Model: | SD-1650FTP |
| Voltage: | AC220V/110V,single phase |
| Power: | 1.5KW |
| Packing size(L XW): | (500-1200)mm×(500-1200)mm |
| Max packing height: | 1000m-1800mm or comstomed |
| Max load weight: | 2000kg |
| Turntable diameter: | 1650mm |
| Turntable rotation speed: | 6-14 rpm/min (adjustable) |
| Turntable height: | 85mm |
| Film carriage Up/down speed: | adjustable |
| Packing capacity: | 20-40 loads/hour |
| Machine weight: | 720kg |
|
PRODUCT DESCRIPTION

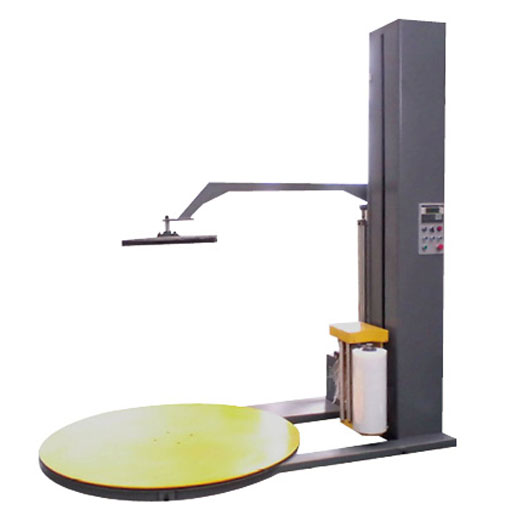

SD-1650FTP industrial pallet wrapping machine comes with top pressing plate for pressing pallet to make it stable when wrapping.So its suitable for lighter,higher and unstable pallets wrapping.
Model | SD-1650FTP |
Wrapping size(LXW) | (500-1200)mm×(500-1200)mm |
Wrapping height | 1000m-1800mm or as your request |
Packing efficiency | 20-40loads/h |
Turntable speed | 6-14rpm (adjustable) |
Turntable diameter | 1650mm |
Turntable height | 98mm |
Turntable loading (max) | 2000kg |
Film carriage system | Pre-stretch film frame, pre-stretch 250％，automatic feeding film |
Lifting system | Double chain structure, lifting speed adjustable |
Control system | PLC control,wrapping layers and frequency adjustable,automatic reset turntable, automatic sensing cargo's height |
Packing material | LLDPE stretch film， Thickness:17-35um Width:500mm |
Machine weight(max) | 720kg |
Overall dimension | 2573mm×1686mm×(2433-2733)mm |
Power/Voltage | 1.5kw/AC 220V |
