01

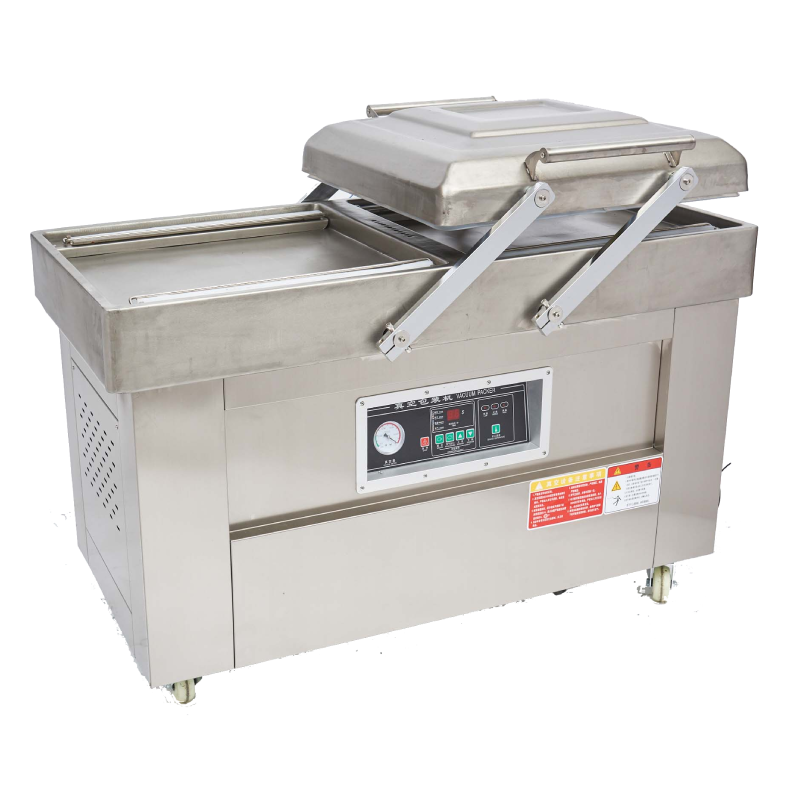

Name:Double chamber vacuum packing machine
Model:DZ-400/2SA/DZ-500/2SADZ-600//2SA
Vacuum chamber material:Stainless steel
Sealing bar size:400x10mm/500x10mm/600x10mm
Vacuum capacity:20m3/h
Vacuum time:10-25seconds/pc
Voltage:AC220V,50Hz/380V,50Hz,3phase

PRODUCT DESCRIPTION

There are two types of double chamber vacuum packing machine.One is flat type and another is room type.Both are widely used in industrial vacuum sealing packing.The biggest difference between two types double chamber vacuum sear packing machine is that the chamber size.So pls chose them according your packing size.

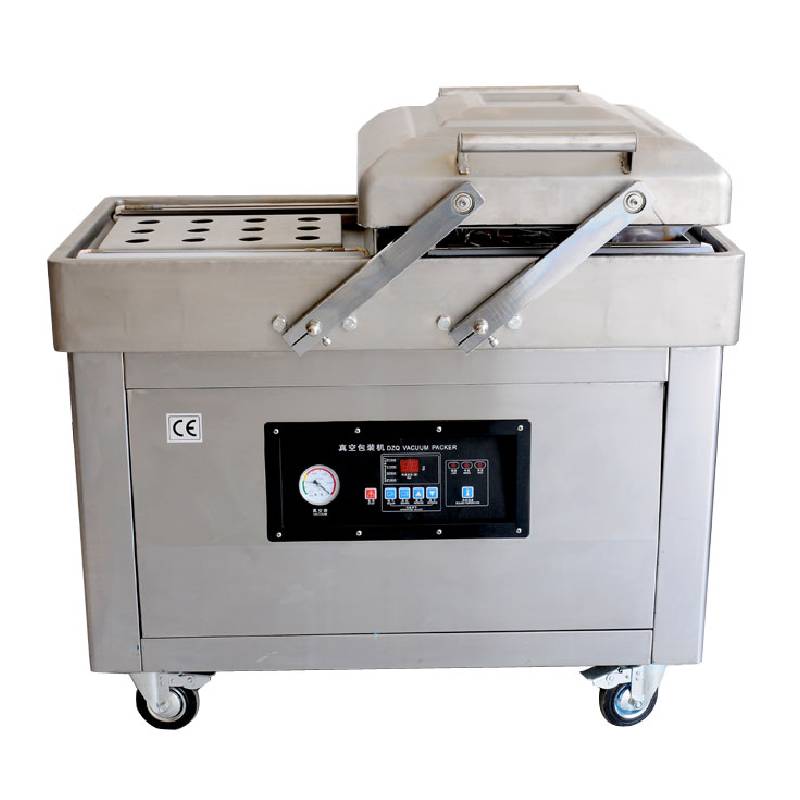

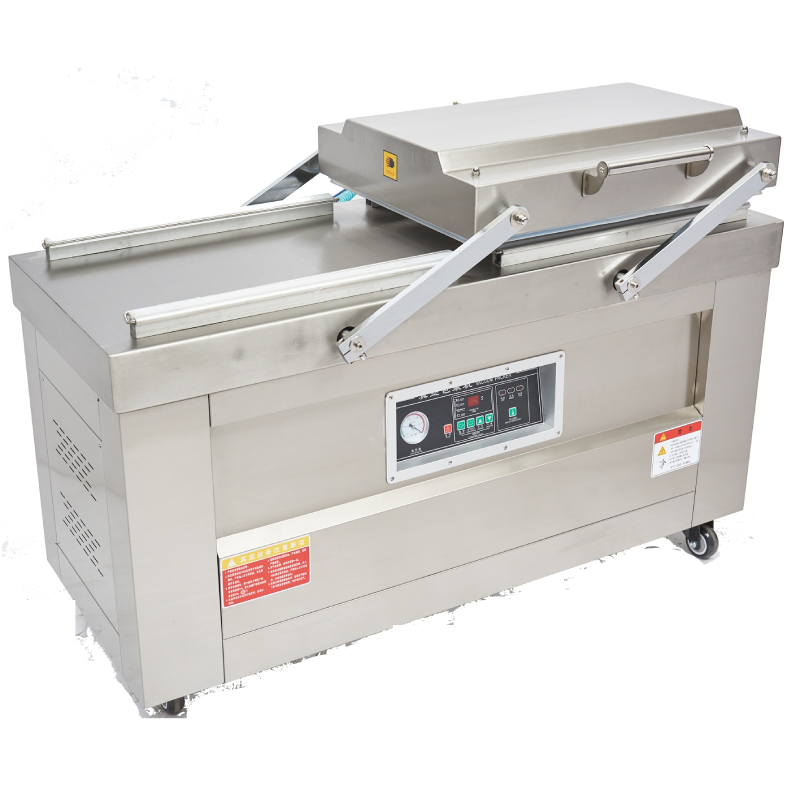

 room type vauum sealer.png                                     flat vacuum sealing machine.png

                                                                              Room type                                                                                            Flat type



Features:

1. Double chamber, high efficient packing vacuum machine.

2.Material of Main Structure: 304 stainless steel body.

3.Electrical requirement and plug could be custom according to customer requirement.

4.The products can be prevented from oxidation, going mould,insects or getting damp, thus can be kept fresh for longer time.

5.Can finish the whole programs of vacuum extraction, gas flushing (optional) , sealing, printing,cooling and exhaust automatically.

6.The vacuum chamber lid gasket made of high-density material guarantees the sealing performance of the machine in routine work.

7.We can provide OEM & ODM for different company with deep vacuum chamber, automatic swing lid, control panel, vacuum pump, gas filling, full 304SS etc.



Parameters:

Model

DZ-400/2SA

DZ-500/2SA

DZ-600/2SA

Voltage

220V/50HZ

380V/50HZ,3phase

380V/50HZ,3phase

Power

0.9KW

1.8KW

1.8KW

Chamber material

Stainless steel

Stainless steel

Stainless steel

Vacuum capacity

20m3/h

20m3/hx2

20m3/hx2

Vacuum chamber size

(flat type)

450*450*100mm

560*520*100mm

660*520*100mm

Vacuum chamber size

(room type)

490*470*140

600*540*140mm

700*540*140mm

Sealing bar size

400*10mm

500*10mm

600*10mm
