01

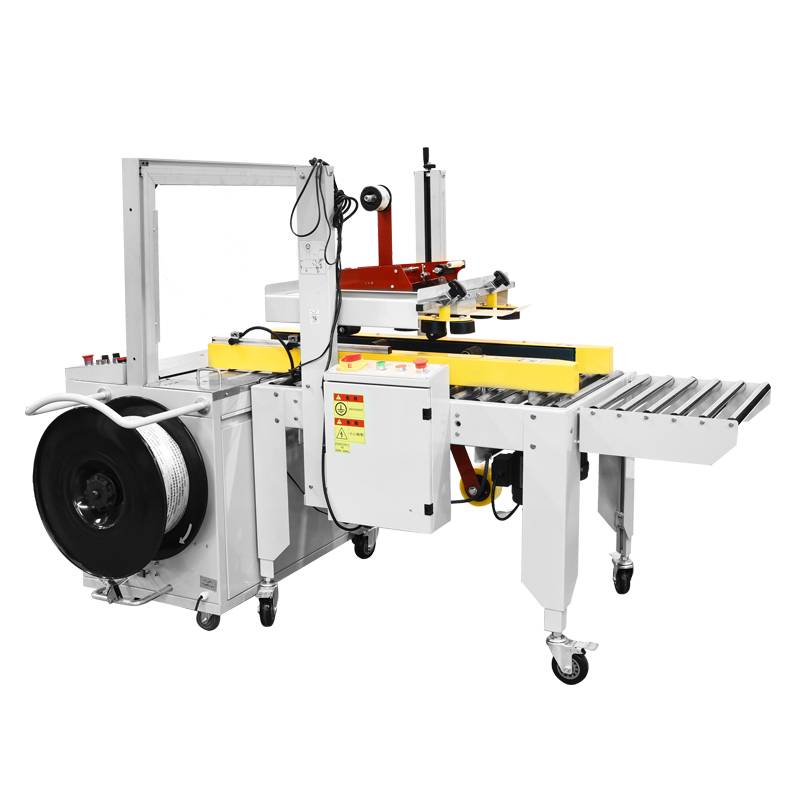

Name:Automatic carton sealing and strapping machine
Voltage:AC220V
Power:0.2KW
Working speed:22m/min
Suitable tape:BOPP adheive tape
Tape width:48/60/75mm
Sealing tape tail length:50-70mm
Max carton size:500×500×∞mm(WxHxL)
Min carton size:80×90×130mm(W×H×L)

PRODUCT DESCRIPTION

Features:

  1. used for carton box automatic sealing and strapping

  2. Controled by PLC,easy to operate

  3. Using photoelectricity to detect the carton strapping position, and 1-3 strappings processes can be realized

  4. Working table is adjustable

  5. It could be use alone or together with other packing line

Parameters:

Voltage (V/Hz)

AC 220/110V 50/60HZ

Power (W)

200

Max. Carton Size(W×H×L) (mm)

500×500×∞

Min. Carton Size(W×H×L) (mm)

80×90×130

Taping Speed(m/min)

22

Available Adhesive Tape

BOPP Water-free Adhesive tape PVC Adhesive tape

Height of Table (mm)

570-800

Width of AdhesiveTape (mm)

36,48

External Dimensions(L×W×H) (mm)

1850×855×(1100-1750)

Net Weight (kg)

115

Max. outer diameter of tape (mm)

250
